Creating Forms Using UITableView and UITextField

Contents

• Introduction
• Source Explanation

Introduction

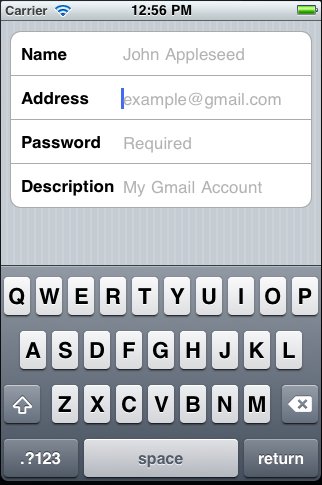

To create a form that resembles the Gmail form in the iPhone Mail application, create a UITableView and add a UITextField into each UITableViewCell.

You can download the source code for an example here:

What follows is a brief explanation of some parts of the code.

Source Explanation

Our controller class has fields to hold references to the UITextFields and their values when they are modified.

@interface FormTableController : UITableViewController<UITextFieldDelegate> {
	NSString* name_ ;
	NSString* address_ ;
	NSString* password_ ;
	NSString* description_ ;

	UITextField* nameField_ ;
	UITextField* addressField_ ;
	UITextField* passwordField_ ;
	UITextField* descriptionField_ ;
}

The makeTextField method creates a UITextField that resembles the ones used in the iPhone Mail application.

-(UITextField*) makeTextField: (NSString*)text
                  placeholder: (NSString*)placeholder  {
	UITextField *tf = [[[UITextField alloc] init] autorelease];
	tf.placeholder = placeholder ;
	tf.text = text ;
	tf.autocorrectionType = UITextAutocorrectionTypeNo ;
	tf.autocapitalizationType = UITextAutocapitalizationTypeNone;
	tf.adjustsFontSizeToFitWidth = YES;
	tf.textColor = [UIColor colorWithRed:56.0f/255.0f green:84.0f/255.0f blue:135.0f/255.0f alpha:1.0f];
	return tf ;
}

The makeTextField is then called in the cellForRowAtIndexPath method to create the text fields, which are then added as subviews of the UITableCells.

cell.textLabel.text = @"Name" ;
tf = nameField_ = [self makeTextField:self.name placeholder:@"John Appleseed"];
[cell addSubview:nameField_];

The dimensions of the text field are also adjusted:

// Textfield dimensions
tf.frame = CGRectMake(120, 12, 170, 30);

When the value of any UITextField is changed, we save the new values by handling textFieldDidEndEditing.

// Textfield value changed, store the new value.
- (void)textFieldDidEndEditing:(UITextField *)textField {
	if ( textField == nameField_ ) {
		self.name = textField.text ;
	} else if ( textField == addressField_ ) {
		self.address = textField.text ;
	} else if ( textField == passwordField_ ) {
		self.password = textField.text ;
	} else if ( textField == descriptionField_ ) {
		self.description = textField.text ;
	}
}

Lastly, we dismiss the keyboard when the user taps Return by handling UIControlEventEditingDidEndOnExit.

// Workaround to dismiss keyboard when Done/Return is tapped
[tf addTarget:self action:@selector(textFieldFinished:) forControlEvents:UIControlEventEditingDidEndOnExit];

// Workaround to hide keyboard when Done is tapped
- (IBAction)textFieldFinished:(id)sender {
    // [sender resignFirstResponder];
}
